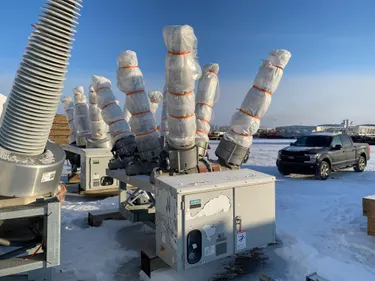

145 Kv Sulfur Hexafluoride Circuit Breaker

Sold

Listing Details

CategoryElectrical Equipment
Listing ID15259
StatusSold
CertificationFuelled Certified
Year2011
Make/ManufacturerSiemens
ModelSPS2-145-40-2
ServiceUnknown
ConditionNew
Fuelled Condition Rating
A
Condition A
New/Unused Equipment

Condition B
Ready to go into operation with minor service (tune-up).
Used but has been overhauled.

Condition C
Requires Overhaul but components are present and not damaged/used beyond repair.

Condition D
Requires Overhaul and major components (vessels, engine, instrumentation, piping, panel, etc.) are missing or damaged beyond repair.

Condition E
Scrap or suitable for parts. Major item(s) missing (I.e. Separator Package missing separator vessel or Compressor Package missing driver).
Notes

Description: Circuit Breaker Tag*
Tag #: 128-GRASSY-B0-52-T-01
Type: SPS2-145-40-2
Rated Max Volts: 145 Kv
Rated Voltage Range Factor: 1.0 (k)
Rated Cont. Current: 1200 A
Rated Short Circuit Current: 40,000A
Frequency: 60 Hz
Rated Out of Phase Current: 10,000A
Weight: 7,800 LBS
Full Wave Impulse Withstand: 650 Kv
Weight of SF6 Gas: 58 LBS
Rated Oper Press: 87 PSIG at 68°F
Min Oper Press: 72 PSIG at 68°F
SF6 Alarm Press: 75 PSIG at 68°F
SF6 Cutout Press: 72 PSIG at 68°F
Serial: S.O.30079579-2
Year: 2011
Rated interrupting Time: 3.0 Cycles

Rated Capacitance Current Switching*
Overvoltage Factor: 2.0
Line Charging: 160A
Isolated Bank Sw: 315A
Back-to-Back Sw: 315A
Inrush Peak: 16,000A
Inrush Freq: 425 Hz

Dimensions *
Length: 150"
Width: 80"
Height: 120"
Weight: 8285 LBS
Sq. Ft: 126

Certified Report

Location
Yard

TC Energy - Myshak Yard

Status
Equipment Still in Operation

No

Does the skid have skirting that needs to be removed

No

Equipment still connected to piping

No

Equipment still welded down to piles

No

Equipment on a gravel pad

No

Electrical still connected to the equipment

Unknown

Have vessels been cleaned out

Unknown

Shiploose items

Unknown

Service
Has equipment been preserved? If so, when?

Unknown

Site Logistics
Equipment accessibility in yard or work site
Access into work site
Any road use agreement to access site

No

Vessel Registrations
Provincial Vessel RegistrationsAB, BC, SK
Equipment Appearance
Missing Parts
Corrosion
Animal Infestation
Overall cleanliness of package
