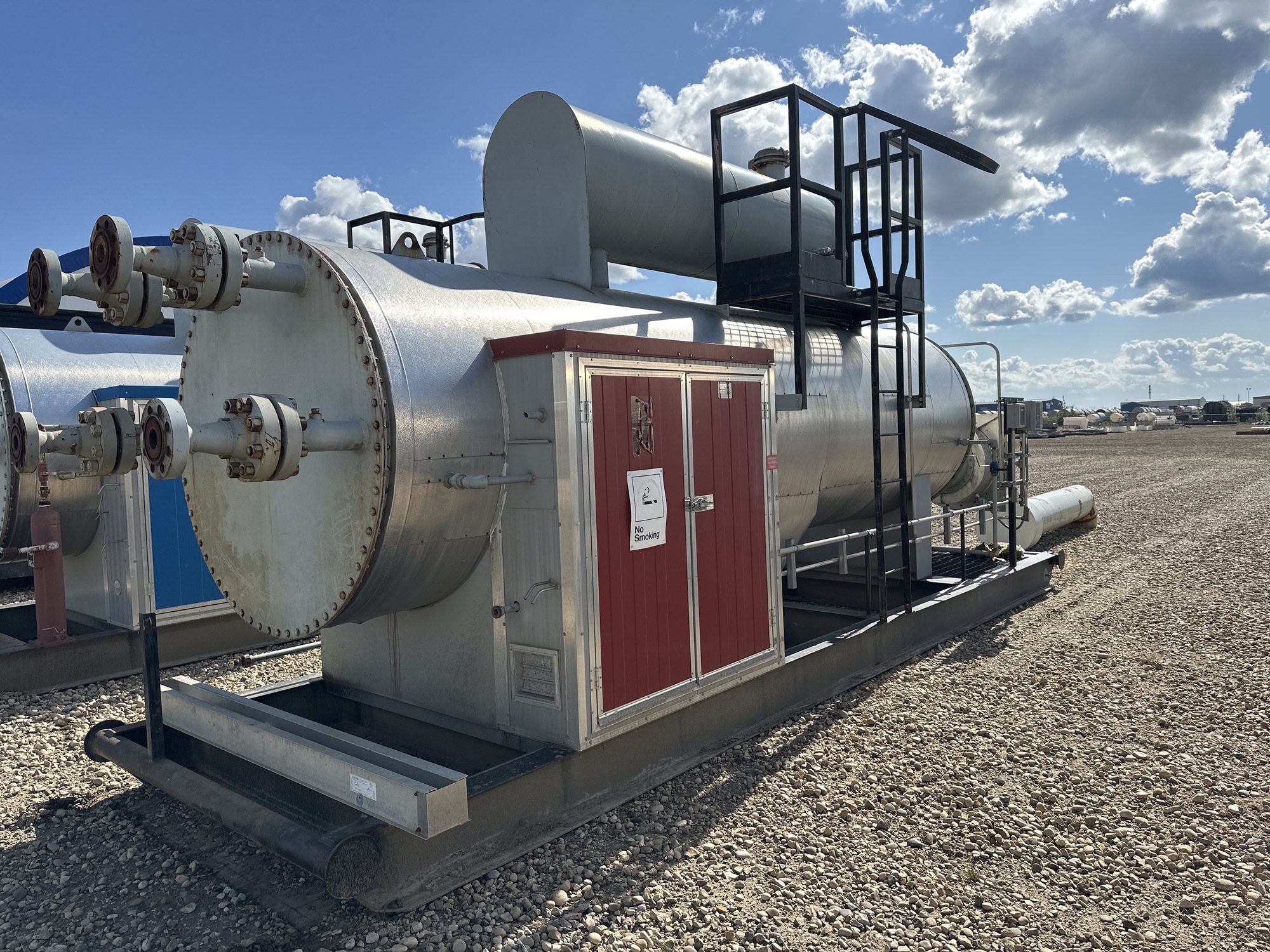

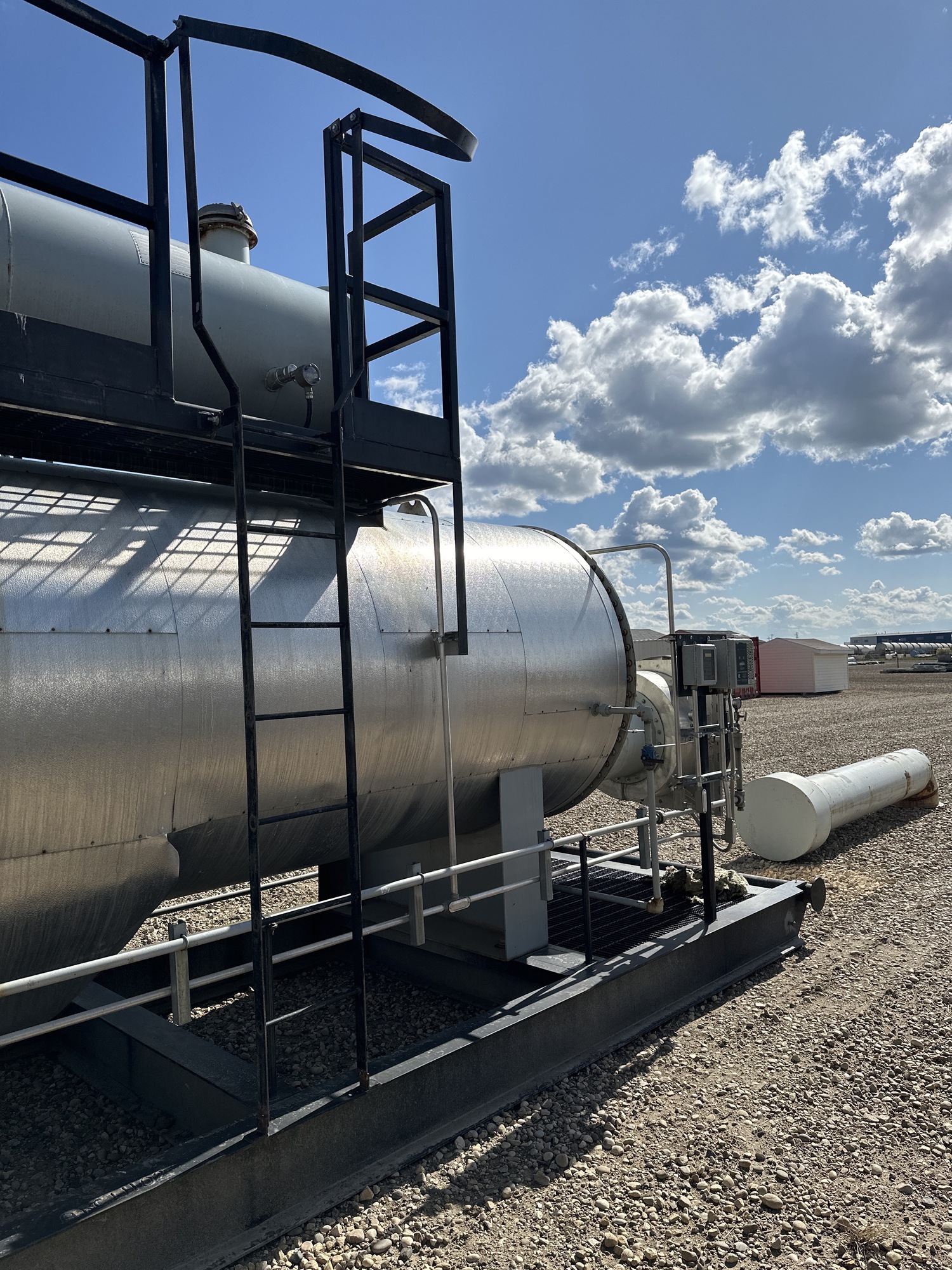

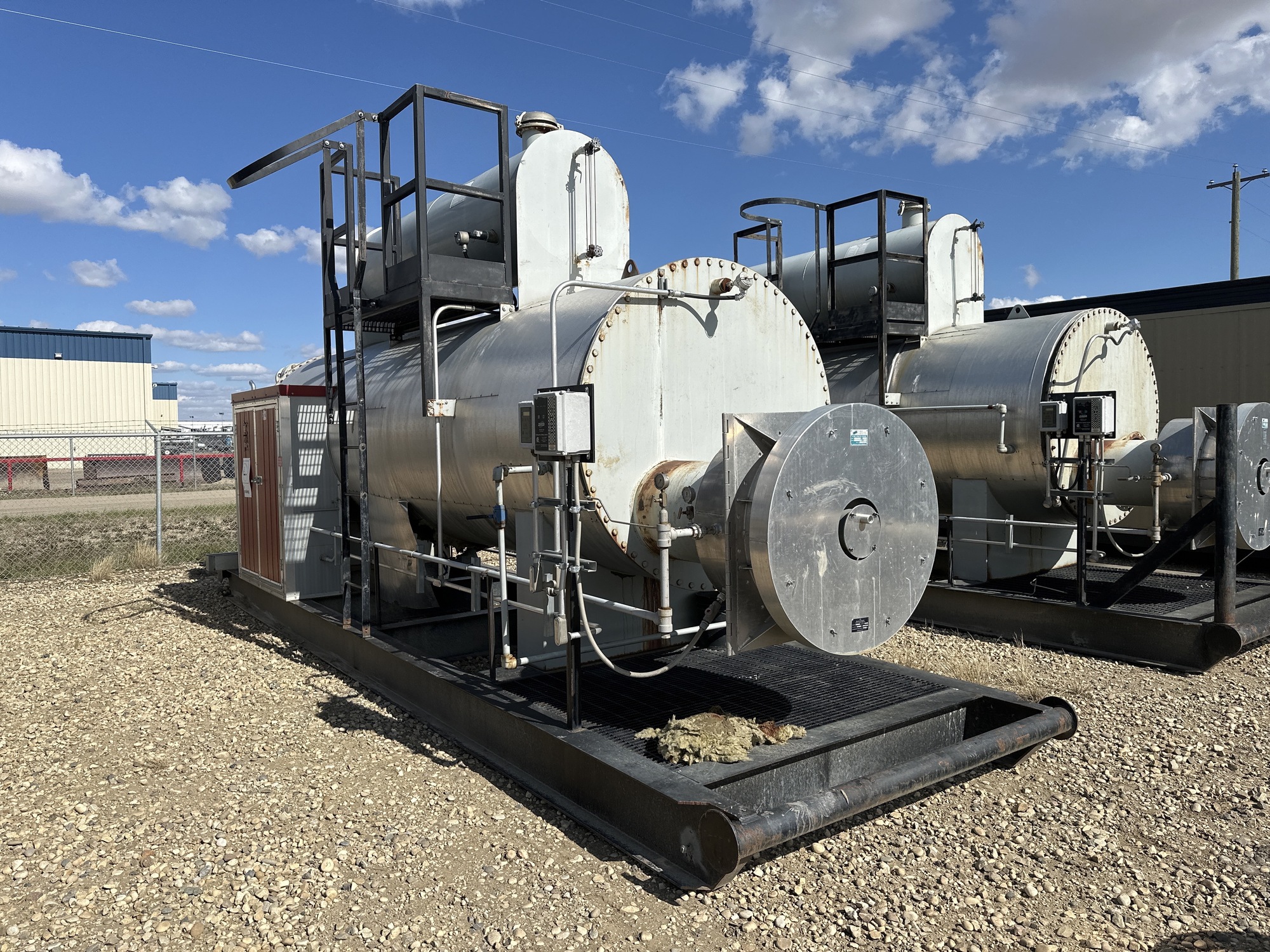

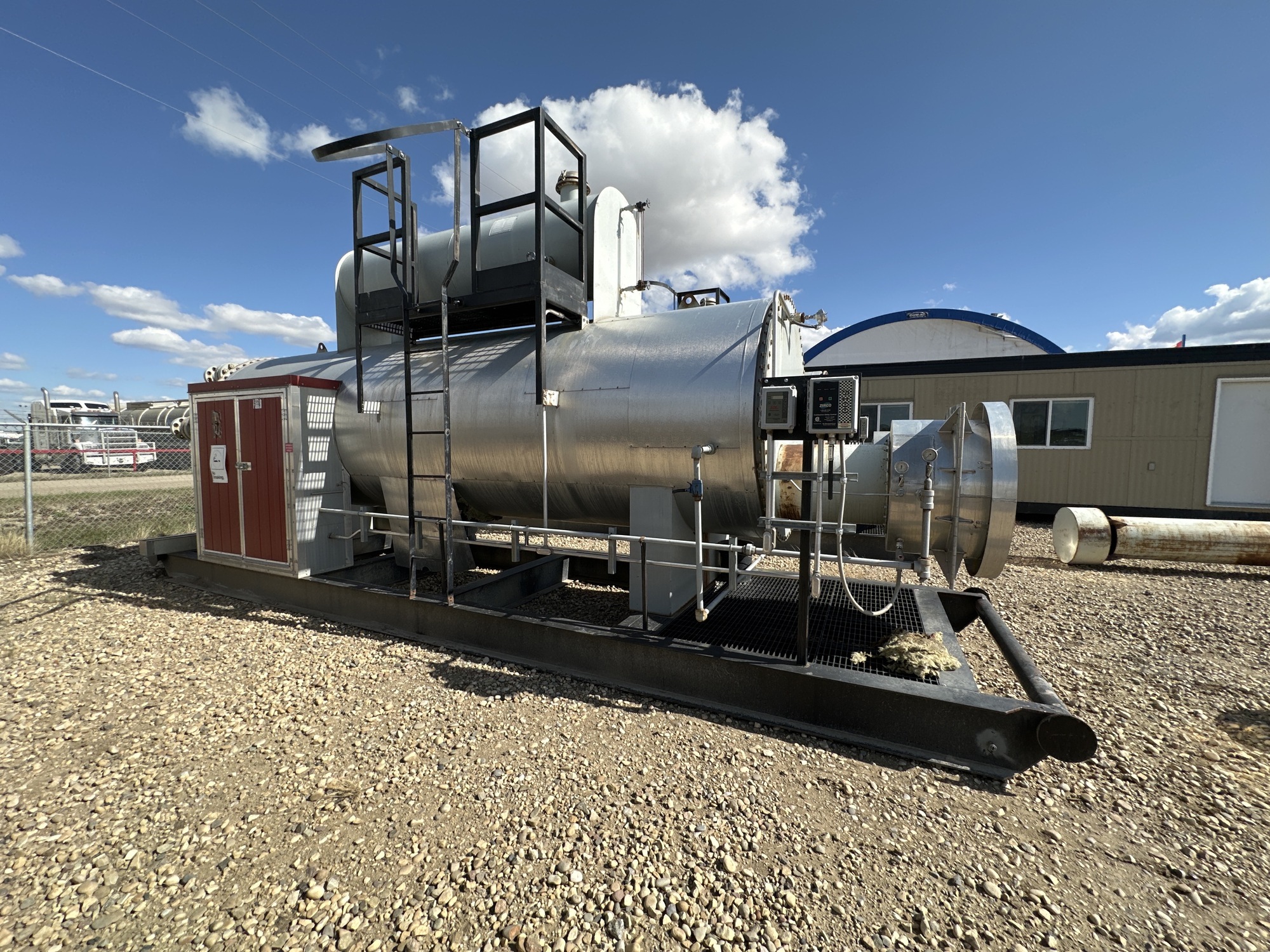

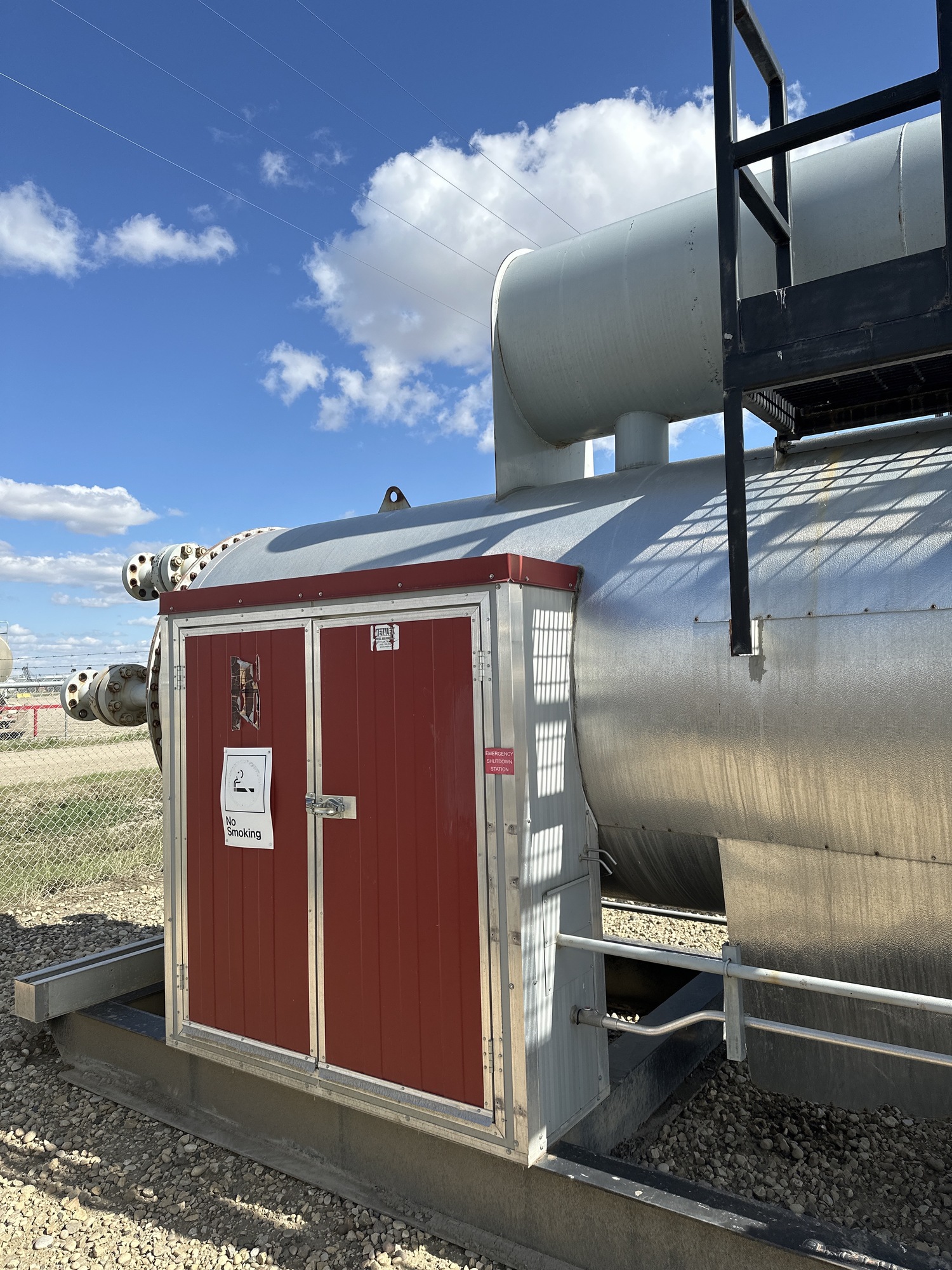

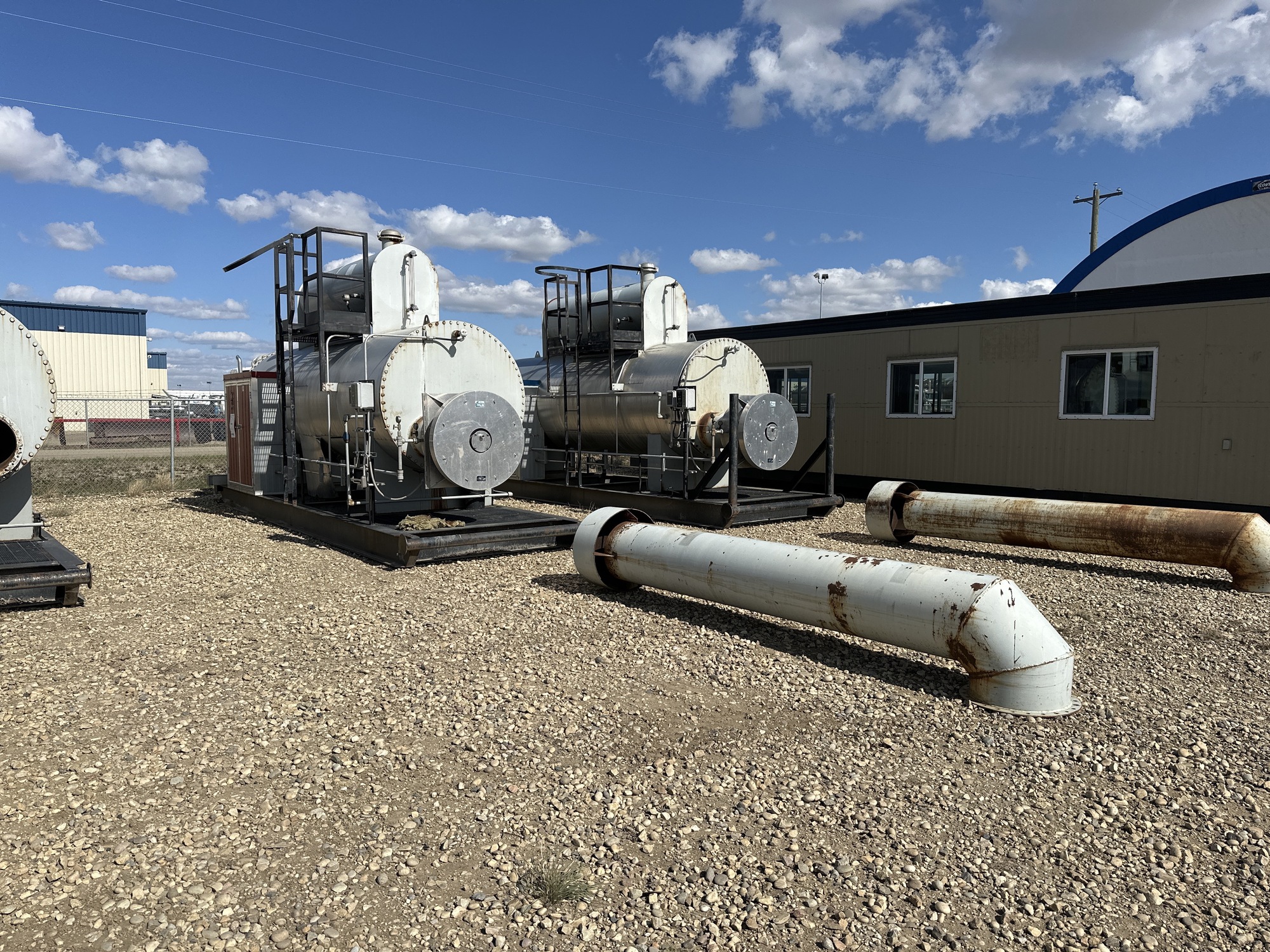

2.0 MMBTU 4" ANSI 1500/1500 Sour Line Heater CAN/CSA B149.3-10 Compliant

CAD $75,000 OBO

Listing Details

CategoryLineHeater
Listing ID23010
StatusAvailable
CertificationFuelled Certified
Year2011
Make/ManufacturerPanax
Serial NumberLH-713
CO2E Savings21.55 Tonnes
ServiceSour
ConditionUsed
Line Heater Details
Burner Management SystemYes
Inlet Connection Diameter4"
Inlet Connection Rating1,500 ANSI
Outlet Connection Diameter4"
Outlet Connection Rating1,500 ANSI
Rated Capacity2,000,000 BTU/hr
Notes

Size: 66" OD x 20' S/S c/w
10 passes of 4" 1500# SCH. 160 RTJWN Preheat Coil
10 passes of 4" 1500# SCH. 160 RTJWN Reheat Coil
Design Pressure: 3212 psig
Design Temperature: 200F
MDMT: -20F
PWHT
1/8" CA
100% Radiography
c/w 405gal expansion tank

Flame Arrested Burner Tag*
Model: FAH32/18-20
Serial: 1101-19B

Line Heater Tag*
Make: Panax
HT W RT-100
Preheat MAWP: 3312 PSI at 200°F
Preheat MDMT: -20°F at 3212 PSI
Reheat MAWP: 3212 PSI at 200°F
Reheat MDMT: -20°F at 3212 PSI
Serial: LH-713
Year: 2011
CRN: P9417.213
A#: 602876
Duty: 2 MMBTU/HR

Certified Report

Location
Yard

Fuelled Ready - GPSY

Status
Equipment Still in Operation

No

Does the skid have skirting that needs to be removed

No

Equipment still connected to piping

No

Equipment still welded down to piles

No

Equipment on a gravel pad

No

Electrical still connected to the equipment

No

Have vessels been cleaned out

Unknown

Shiploose items

Yes

Service
Has equipment been preserved? If so, when?

Unknown

Site Logistics
Equipment accessibility in yard or work site
Access into work site
Any road use agreement to access site

Unknown

Vessel Registrations
Provincial Vessel RegistrationsAB, BC, SK
Equipment Appearance
Missing Parts
Corrosion
Animal Infestation
Overall cleanliness of package
Notes

A54711

Need Help?

Virtual Tour

Location

Grande Prairie, Alberta

Documents

2.0 MMBTU 4" ANSI 1500/1500 Sour Line Heater CAN/CSA B149.3-10 Compliant 61
2.0 MMBTU 4" ANSI 1500/1500 Sour Line Heater CAN/CSA B149.3-10 Compliant 61
2.0 MMBTU 4" ANSI 1500/1500 Sour Line Heater CAN/CSA B149.3-10 Compliant 63
2.0 MMBTU 4" ANSI 1500/1500 Sour Line Heater CAN/CSA B149.3-10 Compliant 64
2.0 MMBTU 4" ANSI 1500/1500 Sour Line Heater CAN/CSA B149.3-10 Compliant 65
2.0 MMBTU 4" ANSI 1500/1500 Sour Line Heater CAN/CSA B149.3-10 Compliant 66
2.0 MMBTU 4" ANSI 1500/1500 Sour Line Heater CAN/CSA B149.3-10 Compliant 67

This equipment is Fuelled Certified.

Benefits to purchasing Fuelled Certified equipment:
  • Visually inspected and catalogued by Fuelled trained representatives
  • Immersive and credible data
  • Fuelled logistical support
Certificate of Environmental BenefitThis Certificate is Proudly Presented toYour CompanyEquipmnent Description: 2.0 MMBTU 4" ANSI 1500/1500 Sour Line Heater CAN/CSA B149.3-10 Compliant*Total CO2E Tonnes Saved: 21.55Reutilizing this equipment from Fuelled is saving a minimum of 21.55 tonnes of CO2E which isequivalent to removing 4.7 passenger vehicles off the road for 1 year.Your NameSignatureDate* Calculated using Fuelled's proprietary emmissions calculator which comeswith certain assumptions and as compared to new manufacturing.
