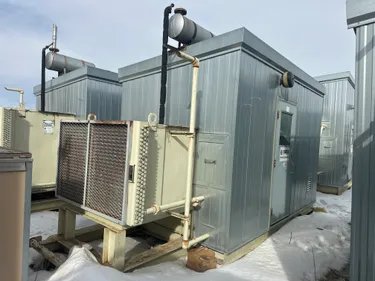

Arrow VRG330 Sweet Compressor Package (Compressor Robbed)

Listing Details

CategoryCompressor Package
Listing ID14076
StatusAvailable
# of Units Available1
Deal PreferenceFor Sale
Price TypeTotal
PackageCompressor - Rocky View Yard
CertificationFuelled Certified
Year2006
Make/ManufacturerSAGE
ServiceSweet
ConditionUsed
Fuelled Condition Rating
C
Condition A
New/Unused Equipment

Condition B
Ready to go into operation with minor service (tune-up).
Used but has been overhauled.

Condition C
Requires Overhaul but components are present and not damaged/used beyond repair.

Condition D
Requires Overhaul and major components (vessels, engine, instrumentation, piping, panel, etc.) are missing or damaged beyond repair.

Condition E
Scrap or suitable for parts. Major item(s) missing (I.e. Separator Package missing separator vessel or Compressor Package missing driver).
Compressor Package Details
MAWP450 PSI
Compressor Details
Compressor TypeScrew
Driver Details
Driver TypeEngine
Driver Fuel TypeUnknown
Driver Horse Power75 HP
Notes

Description: Unit ID: 100566

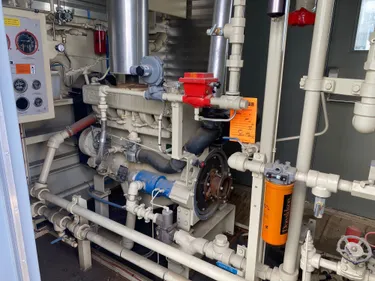

Arrow Driver Tag*
Serial: C-2994
Model: VRG330
Size: 3.375 x 4.665
Year: 2006
Gov Speed: 1800 RPM
Comp Ratio: 8:1
Valve Clearence Intake: 0.027 / 0.033

Compressor Tag** Missing**

Cooler MAWP Tag*
MAWP: 14 PSI at 300°F
MDMT: -20°F at 14 PSI
Serial: V710
Year: 2006
Service: JW
Model: FX36-5

Murphy Control Panel Tag*
Serial: M02-152
Model: M02-152
Annunciation 5VDC Non-incendive
Input Voltage: 150 VDC
Suitable for Class I, Div 2, Group C&D

Inlet Scrubber Tag*
W RT-2
Serial: 16603-03
CRN: R-2203.213
A#: 554904
MAWP: 245 PSI at 250°F
MDMT: -20°F at 245 PSI
Weight: 575 LBS
Year: 2006
Volume: 5.50 FT3
CA: 0.125"
Tag No: V-1
Shell THK: 0.375"
Shell MAT'L: SA-106-B
Head THK: 0.3125"
Head MAT'L: SA-516-70N

Oil Separator Tag*
W RT-2
Serial: 16603-13
CRN: R-1165.213
A#: 537332
MAWP: 450 PSI at 250°F
MDMT: -20°F at 450 PSI
Weight: 1250 LBS
Volume: 4.50 FT3
CA: 0.125"
Year: 2006
Tag No: V-2
Shell THK: 0.375"
Shell MAT'L: SA-106-B
Head THK: 0.3125"
Head MAT'L: SA-516-70N

Sub Type: Pneumatic TTDJ

Make 3: Arrow Engines

Model 3: VRG330

Serial Number 3: C-2994

Make 4: FIN-X

Model 4: FX36-5

Make 5: Murphy

Rated Rpm 3: 1800

Certified Report

Location
Yard

Rocky View Yard

Status
Equipment Still in Operation

No

Does the skid have skirting that needs to be removed

No

Equipment still connected to piping

No

Equipment still welded down to piles

No

Equipment on a gravel pad

No

Electrical still connected to the equipment

No

Have vessels been cleaned out

Unknown

Shiploose items

Unknown

Service
Has equipment been preserved? If so, when?

Unknown

Site Logistics
Equipment accessibility in yard or work site
Access into work site
Any road use agreement to access site

Yes

Vessel Registrations
Provincial Vessel RegistrationsAB, BC, SK
Equipment Appearance
Missing Parts
Corrosion
Animal Infestation
Overall cleanliness of package
