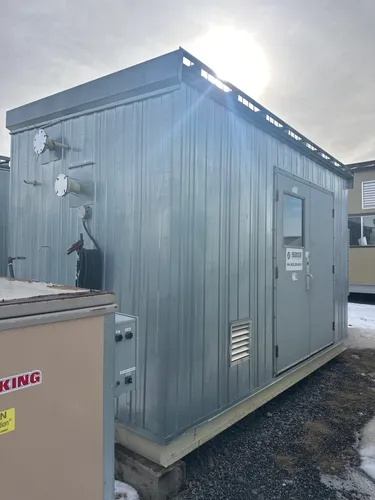

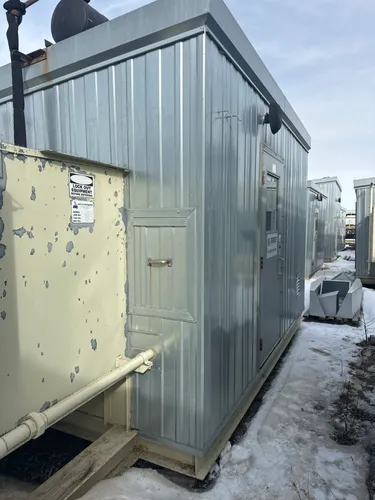

CAT G3304NA Sullair PDH12L Screw Sweet Compressor

Listing Details

CategoryCompressor Package
Listing ID14073
StatusAvailable
# of Units Available1
Deal PreferenceFor Sale
Price TypeTotal
PackageRocky View Yard
CertificationFuelled Certified
Make/ManufacturerSullair
ModelPDH 12L
ServiceSweet
ConditionUsed
Fuelled Condition Rating
C
Condition A
New/Unused Equipment

Condition B
Ready to go into operation with minor service (tune-up).
Used but has been overhauled.

Condition C
Requires Overhaul but components are present and not damaged/used beyond repair.

Condition D
Requires Overhaul and major components (vessels, engine, instrumentation, piping, panel, etc.) are missing or damaged beyond repair.

Condition E
Scrap or suitable for parts. Major item(s) missing (I.e. Separator Package missing separator vessel or Compressor Package missing driver).
Compressor Details
Compressor TypeScrew
Driver Details
Driver TypeEngine
Driver Fuel TypeUnknown
Driver Horse Power95 HP
Notes

Description: Compressor Tag*
Part #: 02250141-903
Model #: PDH12L-26-131
Serial #: 006-05002913

Driver Tag*
Model: G3304
Serial #: N4F01545
Arrangement @: 222-9043

Control Panel Tag*
Murphy Annunciator Panel
Model: M02-152
Manufacturer: Murphy
Annunciation: 5VDC
Input Voltage Voltage: 150VDC

Cooler MAWP Tag*
Max Design Pressure: 14 Psi @ 300º F
Mdmt: -20º F @ 14 Psi
Serial #: 57933C.1
Year: 2006
Hydro: 75

Cooler Tag*
Air-x-hemphill
Model: 42VI
Job #: 57933C
Tag #: 100481
Ref #: 3471

Inlet Scrubber Tag*(
Mawp: 245 Psi @ 250º F
Mdmt: -20º F @ 245 Psi
CRN: R2203.213
Shell Thk: .375
Head Thk: .3125
A #: 554908
Dimensions: 14" x 5'
Year : 2006
Serial #: 16603-07
Tag # : V1

Sub Type: M02-152

Brand: Sullair

Make 3: Caterpillar

Model 3: G3304 NA

Serial Number 3: N4F01545

Make 4: Air x hemphill

Model 4: 42 VI

Make 5: Murphy

Frame Serial Number: 006-05002913

Rated Rpm 3: 1800

Certified Report

Location
Yard

Next Compression

Status
Equipment Still in Operation

No

Does the skid have skirting that needs to be removed

No

Equipment still connected to piping

No

Equipment still welded down to piles

No

Equipment on a gravel pad

No

Electrical still connected to the equipment

Unknown

Have vessels been cleaned out

Unknown

Shiploose items

No

Service
Has equipment been preserved? If so, when?

N/A

Site Logistics
Equipment accessibility in yard or work site
Access into work site
Any road use agreement to access site

N/A

Vessel Registrations
Provincial Vessel RegistrationsAB, BC, SK
Equipment Appearance
Missing Parts
Corrosion
Animal Infestation
Overall cleanliness of package
