CAT G3306NA Sullair PDX12L Sweet Compressor Package

Listing Details

CategoryCompressor Package
Listing ID14090
StatusAvailable
# of Units Available1
Deal PreferenceFor Sale
Price TypeTotal
PackageRocky View Yard
CertificationFuelled Certified
Year2005
Make/ManufacturerSAGE
ModelPDX12L-26-229
ServiceSweet
ConditionUsed
Fuelled Condition Rating
B
Condition A
New/Unused Equipment

Condition B
Ready to go into operation with minor service (tune-up).
Used but has been overhauled.

Condition C
Requires Overhaul but components are present and not damaged/used beyond repair.

Condition D
Requires Overhaul and major components (vessels, engine, instrumentation, piping, panel, etc.) are missing or damaged beyond repair.

Condition E
Scrap or suitable for parts. Major item(s) missing (I.e. Separator Package missing separator vessel or Compressor Package missing driver).
Compressor Package Details
MAWP450 PSI
Compressor Details
Compressor TypeScrew
Driver Details
Driver TypeEngine
Driver Fuel TypeUnknown
Driver Horse Power145 HP
Notes

Description: Unit ID: 100332

CAT Driver Tag*
Serial: G6X00449
Model: G3306NA
Arrangement No: 22-9039
Comp Ratio: 10:5
Power: 108 KW
HP: 145
Full Load RPM: 1800

Sullair Compression Tag*
Serial: 006-04002888
Model: PDX12L-26-229
Part No: 02250097-042

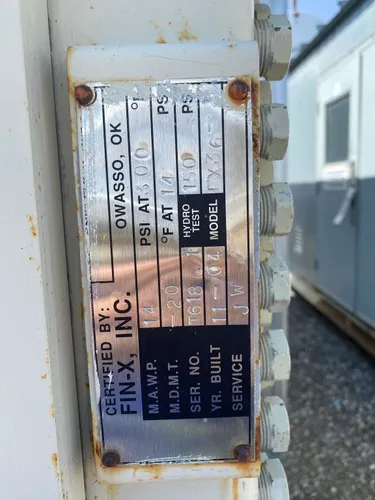

FIN-X Air-Cooler Pressure Tag*
Serial: T618.1
Model: FX36-5
MAWP: 14 PSI at 300°F
MDMT: -20°F at 14 PSI
Hydro 150 PSIG
Year: 2004
Service: KW

Murphy Control Panel Tag*
Serial: M04-75586-50
Annunciation: 5VDC Non-Incendive
Input Voltage: 150VDC
Suitable for: Class I, Div.2, Group C & D

Oil Separator Tag*
Serial: 15340-2
CRN: R1165.213
A#: 523857
MAWP: 450 PSI at 250°F
MDMT: -20°F at 450 PSI
Year: 2005
Tag No: V-2
Weight: 1250 LBS
Volume: 4.5 FT3
CA: 0.125"

Inlet Scrubber Tag*
Serial: 15339-7
CRN: R2203.213
A#: 523864
MAWP: 245 PSI at 250°F
MDMT: -20°F at 245 PSI
Year: 2005
Tag No: V-1
Weight: 575 LBS
Volume: 5.50 FT3
CA: 0.125"
Shell THK: 0.375"
Shell MAT'L: SA-106-B
Head THK: 0.3125"
Head MAT'L: SA-516-70

Sub Type: Pneumatic TTDJ

Brand: SULLAIR

Make 3: CAT

Model 3: G3306NA

Serial Number 3: G6X00449

Make 4: FIN-X

Model 4: FX36-5

Make 5: Murphy

Frame Serial Number: 006-04002888

Rated Rpm 3: 1800

Certified Report

Location
Yard

NEXT Compression - Rocky View Yard

Status
Equipment Still in Operation

No

Does the skid have skirting that needs to be removed

No

Equipment still connected to piping

No

Equipment still welded down to piles

No

Equipment on a gravel pad

No

Electrical still connected to the equipment

Unknown

Have vessels been cleaned out

Unknown

Shiploose items

No

Service
Has equipment been preserved? If so, when?

Unknown

Site Logistics
Equipment accessibility in yard or work site
Access into work site
Any road use agreement to access site

Yes

Vessel Registrations
Provincial Vessel RegistrationsAB, BC, SK
Equipment Appearance
Missing Parts
Corrosion
Animal Infestation
Overall cleanliness of package
