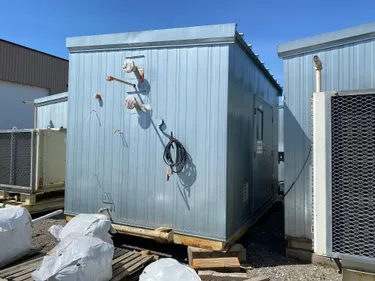

CAT G3306NA Sweet Screw Compressor Package

Contact for Pricing

Listing Details

CategoryCompressorPackage
Listing ID14069
StatusAvailable
# of Units Available1
Deal PreferenceFor Sale
Price TypeTotal
PackageCompressor - Rocky View Yard
CertificationFuelled Certified
Year2005
Make/ManufacturerSAGE
ServiceSweet
ConditionUsed
Compressor Package Details
MAWP450 PSI
Compressor Details
Compressor TypeScrew
Driver Details
Driver TypeEngine
Driver Fuel TypeUnknown
Driver Horse Power145 HP
Notes

Description: Unit ID: 100546

CAT Driver Tag*
Serial: G6X02271
Model: G3306
Arrangement No: 222-9039
Comp Ratio: 10:5
Power: 108 kw
HP: 145
Full Load RPM: 1800

AXH Air-Cooler Tag*
Model: 48 VI
Job No: 67903I
Tag No: Stock
Ref No: 103899

Cooler Pressure Tag*
Serial: 67903I.1
MAWP: 14 PSI at 300°F
MDMT: -20°F at 14 PSI
Year: 2006
Hydro: 75 PSIG

Murphy Control Panel Tag*
Serial: M04-75586-147
Model: M02-152
Annunciation: 5VDC Non-Incendive
Input Voltage 150VDC
Suitable For: Class I, Div. 2, Groups C & D

Inlet Scrubber Tag*
W RT-3
Serial: 16289-3
CRN: R-2346.213
A#: 543234
MAWP: 245 PSI at 250°F
MDMT: -20°F at 245 PSI
Weight: 834 LBS
Volume: 11.2 FT3
CA: 0.125
Year: 2005
Tag No: V-1
Shell THK: 0.375"
Shell MAT'L: SA-106-B
Head THK: 0.3281"
Head MAT'L: SA-234WPB

Oil Separator Tag*
Serial: 16289-6
CRN: R-2345.213
A#: 543237
MAWP: 450 PSI at 250°F
MDMT: -20°F at 450 PSI
Weight: 1390 LBS
Volume: 6.40 FT3
CA: 0.125"
Year: 2005
Tag No: V-2
Shell THK: 0.500"
Shell MAT'L: SA-106-B
Head THK: 0.4375"
Head MAT'L: SA-234-WPB

Sub Type: Pneumatic TTDJ

Make 3: CAT

Model 3: G3306

Serial Number 3: G6X02271

Make 4: AXH Air-Coolers

Model 4: 48 VI

Make 5: Murphy

Rated Rpm 3: 1800

Certified Report

Location
Yard

NEXT Compression - Rocky View Yard

Status
Equipment Still in Operation

No

Does the skid have skirting that needs to be removed

No

Equipment still connected to piping

No

Equipment still welded down to piles

No

Equipment on a gravel pad

No

Electrical still connected to the equipment

Unknown

Have vessels been cleaned out

Unknown

Shiploose items

Unknown

Service
Has equipment been preserved? If so, when?

Unknown

Site Logistics
Equipment accessibility in yard or work site
Access into work site
Any road use agreement to access site

Yes

Vessel Registrations
Provincial Vessel RegistrationsAB, BC, SK
Equipment Appearance
Missing Parts
Corrosion
Animal Infestation
Overall cleanliness of package
