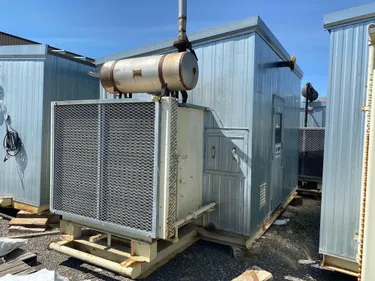

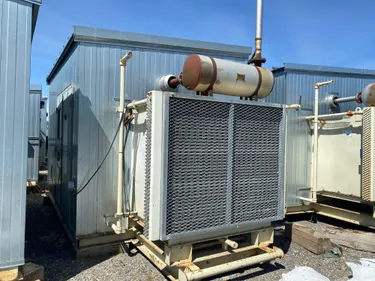

CAT G3306NA Sweet Screw Compressor Package

Contact for Pricing

Listing Details

CategoryCompressorPackage
Listing ID14071
StatusAvailable
# of Units Available1
Deal PreferenceFor Sale
Price TypeTotal
PackageCompressor - Rocky View Yard
CertificationFuelled Certified
Year2003
Make/ManufacturerSAGE
ServiceSweet
ConditionUsed
Fuelled Condition Rating
C
Condition A
New/Unused Equipment

Condition B
Ready to go into operation with minor service (tune-up).
Used but has been overhauled.

Condition C
Requires Overhaul but components are present and not damaged/used beyond repair.

Condition D
Requires Overhaul and major components (vessels, engine, instrumentation, piping, panel, etc.) are missing or damaged beyond repair.

Condition E
Scrap or suitable for parts. Major item(s) missing (I.e. Separator Package missing separator vessel or Compressor Package missing driver).
Compressor Package Details
MAWP450 PSI
Compressor Details
Compressor TypeScrew
Driver Details
Driver TypeEngine
Driver Fuel TypeUnknown
Driver Horse Power145 HP
Notes

Description: Unit ID: 100146

CAT Driver Tag*
Model: G3306NA
Serial: G6X00154
Arrangement No: 2229039
Comp Ratio: 10:5
DEG.C: 0
DEG.F: 0
Power: 108kw
HP: 145
Full Load RPM: 1800

AXH Air-Cooler Tag*
Model: 48 VI
Job No: 37813A-9234
Tag No: 100146
Ref No: 1735

Air Cooler Pressure Tag*
Serial: 9234.1
MAWP: 14 PSI at 300°F
MDMT: -20°F at 14 PSI
Year: 2003
Hydro: 75 PSIG

Murphy Control Panel Tag*
Serial: M02-068-070
Model: M02-068
Annunciation: 5VDC Non-Incendive
Input Voltage: 150VDC
Suitable for Class I, Div. 2, Group C & D

Inlet Scrubber Tag*
Serial: 14069
CRN: R2346.231
A#502473
MAWP: 245 PSI at 250°F
MDMT: -20°F at 245 PSI
Year: 2003
Tag No: V-1
Weight: 834 LBS
Volume: 11.2 FT3
CA: 0.125"
Shell THK: 0.375"
Shell MAT'L: SA-106B
Head THK: 0.328"
Head MAT'L: SA-234-WPB

Oil Separator Tag*
Serial: 14070
CRN: R2345.231
A#: 502472
MAWP: 450 PSI at 250°F
MDMT: -20°F at 450 PSI
Year: 2003
Tag No: V-2
Volume: 6.4 FT3
Weight:1390 LBS
CA: 0.125"

Sub Type: Pneumatic TTDJ

Make 3: CAT

Model 3: G3306NA

Serial Number 3: G6X00154

Make 4: AXH Air-Coolers

Model 4: 48 VI

Make 5: Murphy

Rated Rpm 3: 1800

Certified Report

Location
Yard

NEXT Compression - Rocky View Yard

Status
Equipment Still in Operation

No

Does the skid have skirting that needs to be removed

No

Equipment still connected to piping

No

Equipment still welded down to piles

No

Equipment on a gravel pad

No

Electrical still connected to the equipment

Unknown

Have vessels been cleaned out

Unknown

Shiploose items

Unknown

Service
Has equipment been preserved? If so, when?

Unknown

Site Logistics
Equipment accessibility in yard or work site
Access into work site
Any road use agreement to access site

Yes

Vessel Registrations
Provincial Vessel RegistrationsAB, BC, SK
Equipment Appearance
Missing Parts
Corrosion
Animal Infestation
Overall cleanliness of package
