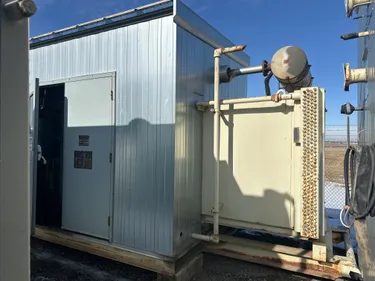

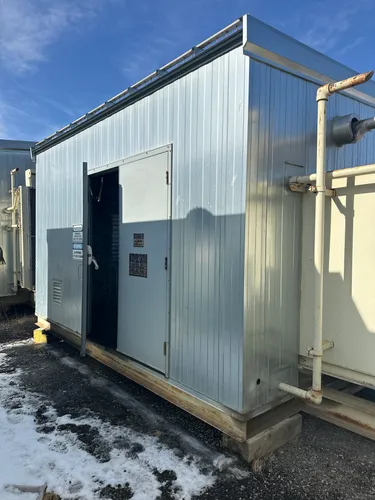

CAT G3306NA Sweet Screw Compressor Package

Contact for Pricing

Listing Details

CategoryCompressorPackage
Listing ID14084
StatusAvailable
# of Units Available1
Deal PreferenceFor Sale
Price TypeTotal
PackageCompressor - Rocky View Yard
CertificationFuelled Certified
Year2006
Make/ManufacturerConcept Compression Corp
ServiceSweet
ConditionUsed
Fuelled Condition Rating
C
Condition A
New/Unused Equipment

Condition B
Ready to go into operation with minor service (tune-up).
Used but has been overhauled.

Condition C
Requires Overhaul but components are present and not damaged/used beyond repair.

Condition D
Requires Overhaul and major components (vessels, engine, instrumentation, piping, panel, etc.) are missing or damaged beyond repair.

Condition E
Scrap or suitable for parts. Major item(s) missing (I.e. Separator Package missing separator vessel or Compressor Package missing driver).
Compressor Details
Compressor TypeScrew
Driver Details
Driver TypeEngine
Driver Fuel TypeUnknown
Driver Horse Power145 HP
Notes

Description: Unit Number: 100607

Compressor Tag:
**FRAME MISSING FROM UNIT**

Inlet Scrubber Tag*
Mawp: 450 Psi @ 250º F
Mdmt: -20º F @ 450 Psi
CRN: R2846.213
Shell Thk: .375
Head Thk: .3281
A #: 571715
Year Built: 2006
Serial #: 16752-01
Tag #: V-1
Dimensions: 20" x 5'

Driver Tag*
Model: G3306NA
Serial Number: G6X00811
Advertised HP: 145
Rpm: 1800

Control Panel:
Murphy
Serial: M04-75586-160
Model: M02-152
Annunciation 5VDC Non-incendive
Input Voltage: 150 VDC
Suitable for Class I, Div 2, Group C&D

Cooler Tag*
Air-X-Hemphill
Model #: 48 VI
Job #: 67903N
Ref #: 103899

Cooler MAWP Tag*
MAWP: 14 Psi @ 300º F
MDMT: -20º F @ 14 Psi
Serial #: 67903N.1
Year : 2006
Hydro: 75

Make 3: CAT

Model 3: G3306NA

Serial Number 3: G6X00811

Make 4: Air-X-Hemphill

Model 4: 48 VI

Make 5: Murphy

Rated Rpm 3: 1800

Certified Report

Location
Yard

NEXT Compression - Rocky View Yard

Status
Equipment Still in Operation

No

Does the skid have skirting that needs to be removed

No

Equipment still connected to piping

No

Equipment still welded down to piles

No

Equipment on a gravel pad

No

Electrical still connected to the equipment

Yes

Have vessels been cleaned out

Unknown

Shiploose items

Unknown

Service
Has equipment been preserved? If so, when?

Unknown

Site Logistics
Equipment accessibility in yard or work site
Access into work site
Any road use agreement to access site

Yes

Vessel Registrations
Provincial Vessel RegistrationsAB, BC, SK
Equipment Appearance
Missing Parts
Corrosion
Animal Infestation
Overall cleanliness of package
