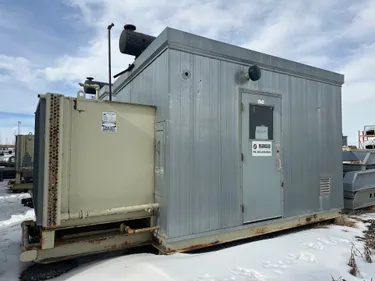

Cummins G8.3C Sullair PDH12L Sweet Screw Compressor

Listing Details

CategoryCompressor Package
Listing ID14080
StatusAvailable
# of Units Available1
Deal PreferenceFor Sale
Price TypeTotal
PackageRocky View Yard
CertificationFuelled Certified
Year2006
Make/ManufacturerSAGE
ModelPDH12L-22-235
ServiceSweet
ConditionUsed
Fuelled Condition Rating
C
Condition A
New/Unused Equipment

Condition B
Ready to go into operation with minor service (tune-up).
Used but has been overhauled.

Condition C
Requires Overhaul but components are present and not damaged/used beyond repair.

Condition D
Requires Overhaul and major components (vessels, engine, instrumentation, piping, panel, etc.) are missing or damaged beyond repair.

Condition E
Scrap or suitable for parts. Major item(s) missing (I.e. Separator Package missing separator vessel or Compressor Package missing driver).
Compressor Details
Compressor TypeScrew
Driver Details
Driver TypeEngine
Driver Fuel TypeUnknown
Driver Horse Power99 HP
Notes

Description: Unit Number: 100570

Compressor Tag:
Part #: 02250139-180
Model #: PDH12L-22-235
Serial #: 006-05003375

Inlet Scrubber Tag*
Mawp: 245 Psi @ 250º F
Mdmt: -20º F @ 245 Psi
CRN: R2203.213
Shell Thk: .375
Head Thk: .3125
A #: 554879
Year Built: 2006
Serial #: 16602-05
Tag #: V-1
Dimensions: 14" x 5'

Driver Tag*
Model: G8.3C
Engine #: 46473365
Date of Manufacture: 2005
Advertised HP: 99
Rpm: 1800
Piston: 3930016
Ratio: 10.5
Shop Order: S048874
Camshaft: 4099606

Control Panel:
Murphy
Serial: M04-75586-72
Model: M02-152
Annunciation 5VDC Non-incendive
Input Voltage: 150 VDC
Suitable for Class I, Div 2, Group C&D

Cooler Tag*
Air-X-Hemphill
Model #: 48 VI
Job #: 67904E
Ref #: 104029 Rev 2

Cooler MAWP Tag*
MAWP: 14 Psi @ 300º F
MDMT: -20º F @ 14 Psi
Serial #: 67904E.1
Year : 2006
Hydro: 75

Brand: Sullair

Make 3: Cummins

Model 3: G8.3C

Serial Number 3: 46473365

Make 4: Air-X-Hemphill

Model 4: 48 VI

Make 5: Murphy

Frame Serial Number: 006-05003375

Rated Rpm 3: 1800

Certified Report

Location
Yard

NEXT Compression - Rocky View Yard

Status
Equipment Still in Operation

No

Does the skid have skirting that needs to be removed

No

Equipment still connected to piping

No

Equipment still welded down to piles

No

Equipment on a gravel pad

No

Electrical still connected to the equipment

Yes

Have vessels been cleaned out

Unknown

Shiploose items

Unknown

Service
Has equipment been preserved? If so, when?

Unknown

Site Logistics
Equipment accessibility in yard or work site
Access into work site
Any road use agreement to access site

Yes

Vessel Registrations
Provincial Vessel RegistrationsAB, BC, SK
Equipment Appearance
Missing Parts
Corrosion
Animal Infestation
Overall cleanliness of package
