Cummins G855C SULLAIR PDH12L-358 Sweet Compressor Package

Listing Details

CategoryCompressor Package
Listing ID14062
StatusAvailable
# of Units Available1
Deal PreferenceFor Sale
Price TypeTotal
PackageCompressor - Rocky View Yard
CertificationFuelled Certified
Year2005
Make/ManufacturerSAGE
ModelPDH12L-358
ServiceSweet
ConditionUsed
Fuelled Condition Rating
C
Condition A
New/Unused Equipment

Condition B
Ready to go into operation with minor service (tune-up).
Used but has been overhauled.

Condition C
Requires Overhaul but components are present and not damaged/used beyond repair.

Condition D
Requires Overhaul and major components (vessels, engine, instrumentation, piping, panel, etc.) are missing or damaged beyond repair.

Condition E
Scrap or suitable for parts. Major item(s) missing (I.e. Separator Package missing separator vessel or Compressor Package missing driver).
Compressor Package Details
MAWP450 PSI
Compressor Details
Compressor TypeScrew
Driver Details
Driver TypeEngine
Driver Fuel TypeUnknown
Driver Horse Power188 HP
Notes

Description: Unit ID: 100415

Cummins Driver Tag*
Serial: 25298851
Model: G855C
Year: 2005
HP: 188
RPM: 1800
Piston: 3226009
Ratio: 10:1
Camshaft: 3043928

Sullair Compressor Tag*
Serial: 6-05013450
Model: PDH12L-358
Part No: 02250157-360

AXH Air-Cooler Tag*
Model: 60VI
Job No: 57903
Tag No: 10047
Ref No: 3141

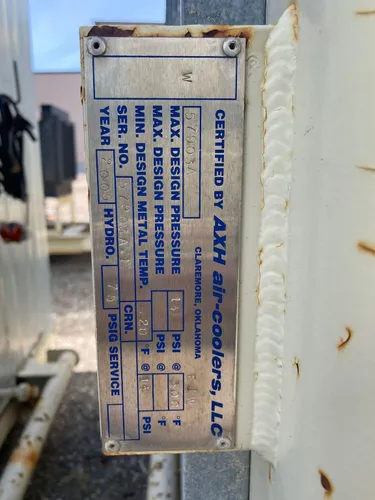

Cooler Pressure Tag #1 *
Serial: 57903A.1
MAWP: 14 PSI at 300°F
MDMT: -20°F at 14 PSI
Year: 2005
Hydro: 75 PSIG
Cooler Pressure Tag #2*
Serial: 57903A.2
MAWP: 14 PSI at 300°F
MDMT: -20°F at 14 PSI
Year: 2005
Hydro: 75 PSIG

Murphy Control Panel Tag*
Serial: M02-152-032
Model: M02-152
Annunciation: 5VDC Non-Incendive
Input Voltage: 150 VDC
Suitable for: Class I, Div. 2, Group C& D

Inlet Scrubber Tag*
Serial: 15394-8
CRN: R5810.213
A#: 529884
MAWP: 245 PSI at 250°F
MDMT: -20°F at 245 PSI
Year: 2005
Tag No: V-1
Weight: 1335 LBS
Volume: 25.7 FT3
CA: 0.125
Shell THK: 0.375"
Shell MAT'L: SA-106-B
Head THK: 0.3125"
Head MAT'L: SA-516-70

Oil Separator Tag*
Serial: 15394-15
CRN: R5809.213
A#: 529879
MAWP: 450 PSI at 250°F
MDMT: -20°F at 450 PSI
Year: 2005
Tag No: V-2
Weight: 1370 LBS
Volume: 16.4 FT3
CA: 0.125"
Shell THK: 0.50"
Shell MAT'L: SA-106-B
Head THK: 0.687570.4375"
Head MAT'L: SA-516-70N

Sub Type: Pneumatic TTDJ

Brand: SULLAIR

Make 3: Cummins

Model 3: G855C

Serial Number 3: 25298851

Make 4: AXH Air-Coolers

Model 4: 60VI

Make 5: Murphy

Frame Serial Number: 6-05013450

Rated Rpm 3: 1800

Certified Report

Location
Yard

NEXT Compression - Rocky View Yard

Status
Equipment Still in Operation

No

Does the skid have skirting that needs to be removed

No

Equipment still connected to piping

No

Equipment still welded down to piles

No

Equipment on a gravel pad

No

Electrical still connected to the equipment

Unknown

Have vessels been cleaned out

Unknown

Shiploose items

Yes

Service
Has equipment been preserved? If so, when?

Unknown

Site Logistics
Equipment accessibility in yard or work site
Access into work site
Any road use agreement to access site

Yes

Vessel Registrations
Provincial Vessel RegistrationsAB, BC, SK
Equipment Appearance
Missing Parts
Corrosion
Animal Infestation
Overall cleanliness of package
