Cummins G855C Sweet Screw Compressor

Listing Details

CategoryCompressor Package
Listing ID14075
StatusAvailable
# of Units Available1
Deal PreferenceFor Sale
Price TypeTotal
PackageCompressor - Rocky View Yard
CertificationFuelled Certified
ServiceSweet
ConditionUsed
Fuelled Condition Rating
C
Condition A
New/Unused Equipment

Condition B
Ready to go into operation with minor service (tune-up).
Used but has been overhauled.

Condition C
Requires Overhaul but components are present and not damaged/used beyond repair.

Condition D
Requires Overhaul and major components (vessels, engine, instrumentation, piping, panel, etc.) are missing or damaged beyond repair.

Condition E
Scrap or suitable for parts. Major item(s) missing (I.e. Separator Package missing separator vessel or Compressor Package missing driver).
Compressor Details
Compressor TypeScrew
Driver Details
Driver TypeEngine
Driver Fuel TypeUnknown
Driver Horse Power188 HP
Notes

Description: Compressor is missing from unit

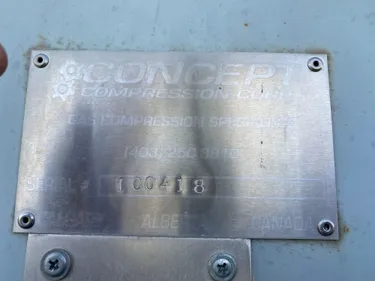

Compressor # 100418

Driver Tag*
Model: G855C
Engine #: 25294890
Year: 2004
Advertised HP: 188
Rpm: 1800
Piston: 3226009
Ratio: 10.1
Camshaft: 3043928

Inlet Scrubber Tag*
Mawp: 245 Psi @ 250º F
Mdmt: -20º F @245 Psi
Serial #: 15394-7
CRN: R5810.213
Shell Thk: .375 "
Head Thk: .3125
Year Built: 2005
Tag #: V1
A#: 529860
Mat'l: SA-516-70
Dimensons: 14" (est) x 5'

Cooler Tag*
Air-x-hemphill
Model: 60 VI
Job #: 57912D
Tag #: 100421
Ref #: 3141

Cooler Mawp Tag*
Serial #: 57912D
Max Design Pressure: 14 Psi @ 300º F
Mdmt: -20º F @ 14 Psi
Year: 2005
Hydro: 75

Control panel tag*
Murphy Annunciator Panel: QM02-152
Manufacturer: Murphy
Annunciation: 5VDC Non-incendive
Input Voltage: 150VDC

Sub Type: M02-152

Make 3: Cumins

Model 3: G855C

Serial Number 3: 25294890

Make 4: Air x hemphill

Model 4: 60 VI

Make 5: Murphy

Rated Rpm 3: 1800

Certified Report

Location
Yard

Next Compression - Rocky View Yard

Status
Equipment Still in Operation

No

Does the skid have skirting that needs to be removed

No

Equipment still connected to piping

No

Equipment still welded down to piles

No

Equipment on a gravel pad

No

Electrical still connected to the equipment

No

Have vessels been cleaned out

Unknown

Shiploose items

No

Service
Has equipment been preserved? If so, when?

N/A

Site Logistics
Equipment accessibility in yard or work site
Access into work site
Any road use agreement to access site

Yes

Vessel Registrations
Provincial Vessel RegistrationsAB, BC, SK
Equipment Appearance
Missing Parts
Corrosion
Animal Infestation
Overall cleanliness of package
